Product Introduction

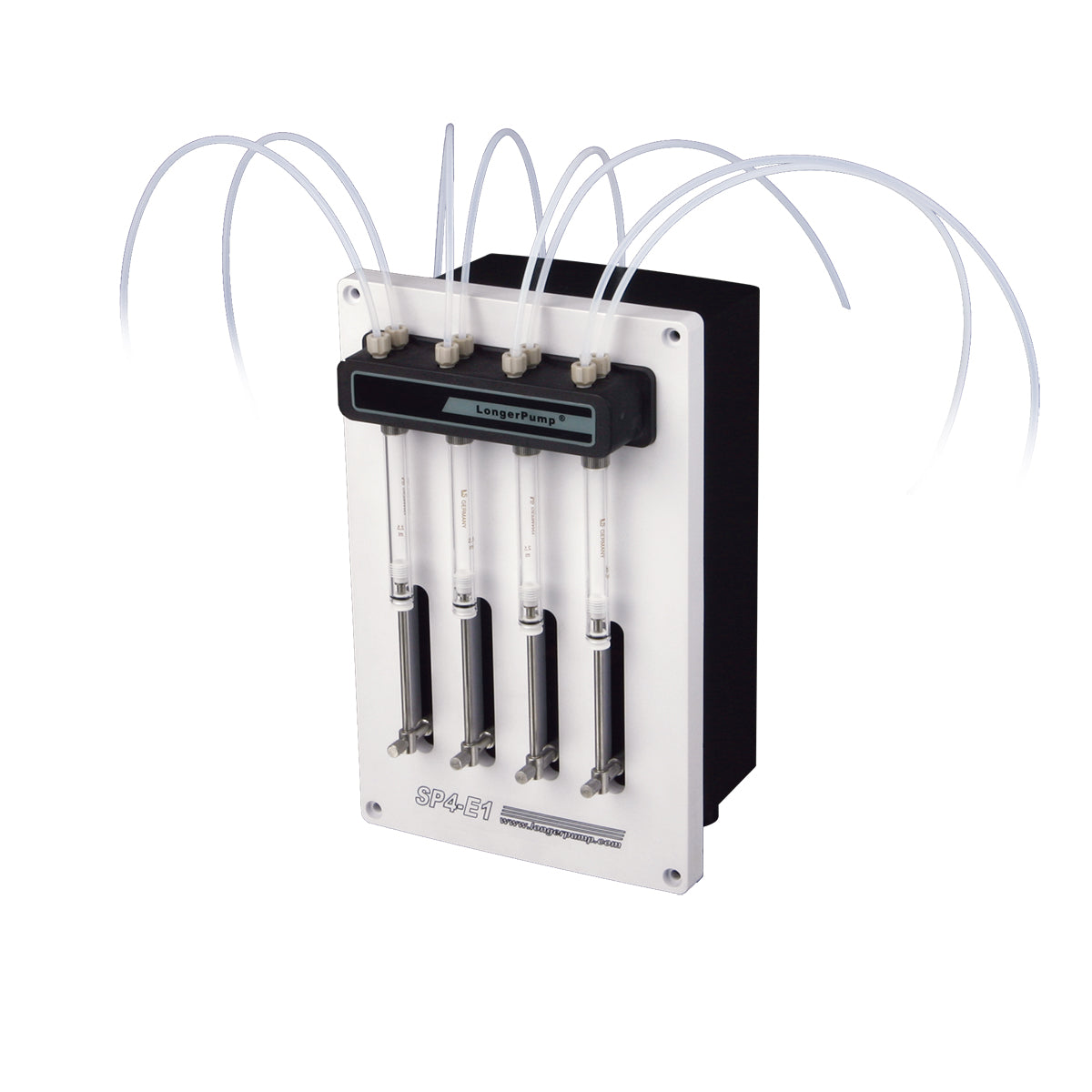

SP4-E1 is a compact OEM pump module designed to handle precision liquid handling application. The pump could be mounted with 4 special designed glass syringes from 50ul to 5ml. And the four syringes will run synchronously. The pump is configured with 4 channel solenoid valves for the liquid passage control. It is controlled by an external controller or computer through RS485 or RS232 interface and automates pipetting, diluting and dispensing function.
Flow rates0.0015ml/min-≤120ml/min
Max. Number of Channels4

Main Functions and Features

- Transmission mechanism: Synchronous belt mechanism
- Plunger drive force (max.): >68N for four channels
- Syringe: 50μl, 100μl, 250μl, 500μl, 1ml, 2.5ml, 5ml
- Valve: 3-way solenoid valve
- Valve plug turn time: <100ms
- Wetted material: Borosilicate glass, PTFE, PCTFE
- Max. pressure: 0.1 Mpa

- Tubing fitting: 1/4"-28 thread
- Syring fitting: 1/4"-28 thread
- Signal input: 2 input signals (TTL signal, drive current >16mA) to restart the pump after pause
- Signal output: 3 output signals (OC gate signal ) to indicate the working state
- External solenoid valve control: with built-in solenoid valve
- Communication interface: RS485 or RS232
- Bit rate: 9600 bps or 38400 bps
- Pump ID setting:  Set the pump ID through BCD dial switch
- Pump parameters setting: Set the parameters through DIP switch

Technical Specifications

- Accuracy: <1% (rated stroke)
- Precision: Repeatability <0.5% (rated stroke)
- Rated stroke (steps): 60mm (1000 steps)
- Linear speed: 0.03mm/s - 24mm/s
- Time for rated stroke: 2.5s - 2000s
- Control resolution: 0.06 mm (1 step)
- Dimension (L*W*H): 140*167*261.5 (mm)
- Power supply: DC24V/1.5A
- Operating temperature: 15 - 40 ℃
- Relative humidity: < 80%
- Weight: 2.4 kg
