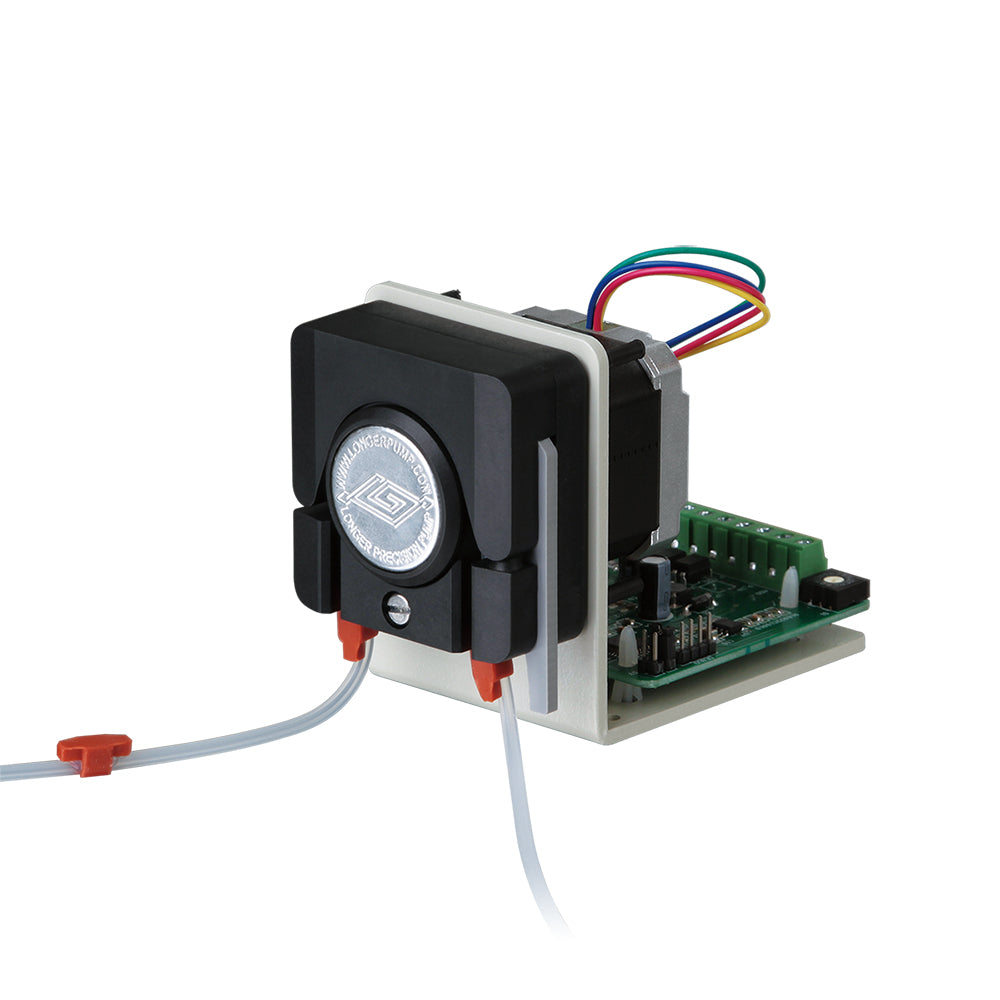

T60&WX10-14 Series OEM Peristaltic Pump
T60&WX10-14 Series OEM Peristaltic Pump

T60&WX10-14 Series OEM Peristaltic Pump

$ 3,982.00

Adopt WX10-14 pump head, multi-control modes.
Ideal OEM peristaltic pump for equipments and instruments.
Soleplate or panel installation.

Flow rates:-≤24ml/min

Max. Number of Channels:1

Applications:

OEM for customer device and instrument.

Product Instruction:

Adopt WX10-14 pump head, multi-control modes.
Ideal OEM peristaltic pump for equipments and instruments.
Soleplate or panel installation.

Main Functions and Features

Product Type Product Code External Control Mode
T60-S1&WX10-14 05.57.01A Dial switch combine with external signal (4-20mA)
T60-S2&WX10-14 05.57.11A Dial switch combine with external signal (0-5V)
T60-S3&WX10-14 05.57.21A Dial switch combine with external signal (0-10V)
T60-S4&WX10-14 05.57.31A Dial switch combine with external signal (0-10kHz)
T60-S50&WX10-14 05.57.41A RS485 communication

Technical Specifications

- Speed: ≤60rpm
- Speed resolution: 0.1rpm
- Max. flow rate: 24mL/min
- Tubing: ID≤3.17mm  wall thickness 0.8mm-1.0mm
- *Direction control: Pump runs if external control input is open circuit; pump stops if external control input is close circuit.
- *Start/stop control: Pump runs if external control input is open circuit; pump stops if external control input is close circuit.
- *BCD dial switch speed control: 15 kind of speeds are available for internal control, and "0" position is for external control.
- *External speed control (optional):
4-20mA corresponding to 0-60rpm
0-5V corresponding to 0-60rpm
0-10V corresponding to 0-60rpm
0-10kHz corresponding to 0-60rpm
- **Communication pump ID: Pump ID range is 1-30
- **Baud rate: 1200dps or 9600dps optional
- Dimension (LxWxH): 107mmx60mmx80mm
- Relative humidity: <80%
- Operating temperature: 0 to 40°C
- Power supply: DC11.4V-25.2V/10W
Note: Items with * mean dial switch combine with external signal. Items with ** mean RS485 functions only.
