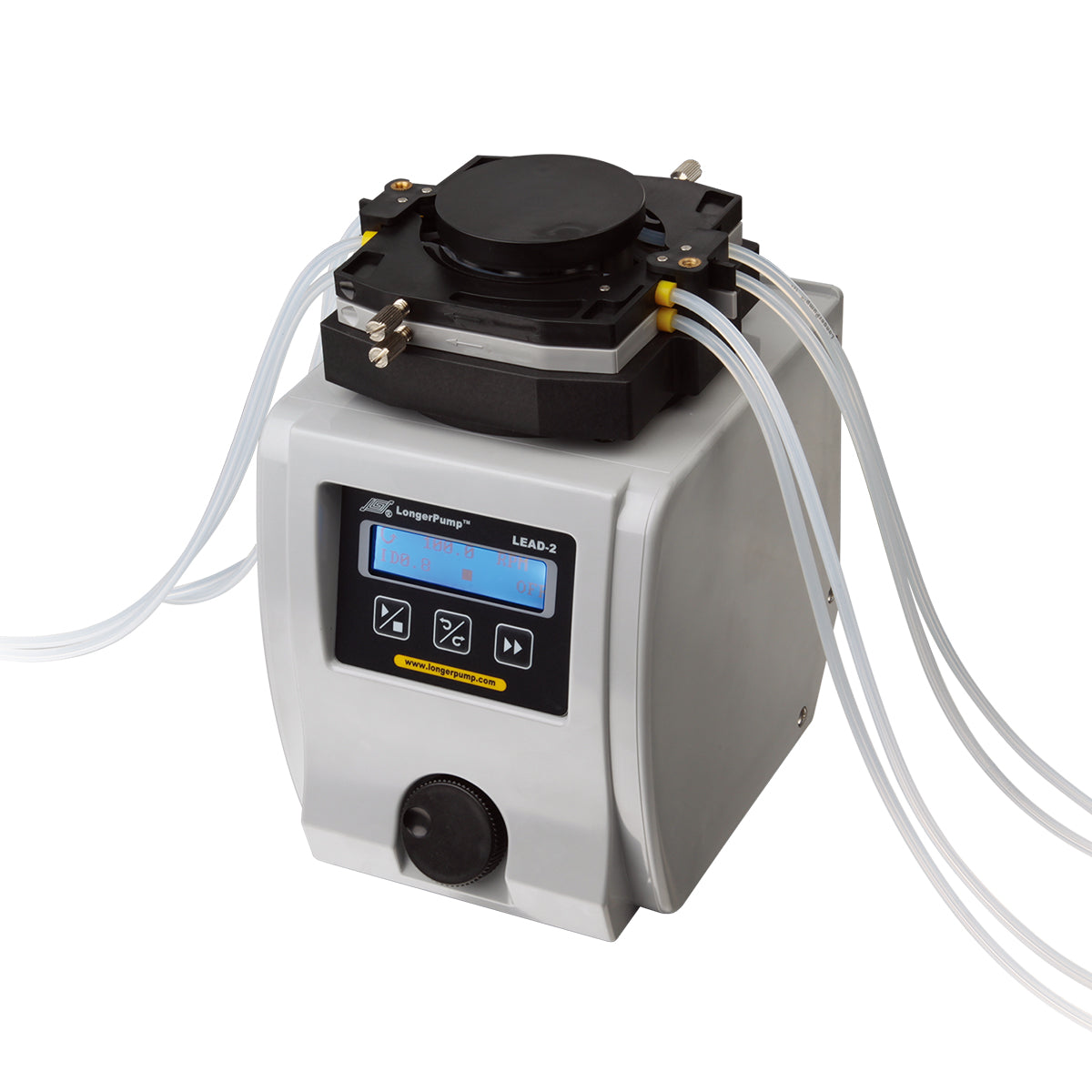

Flow Rate Peristaltic Pump LEAD-2
Flow Rate Peristaltic Pump LEAD-2

Flow Rate Peristaltic Pump LEAD-2


Product Introduction

Multi-channels peristaltic pump LEAD-2 could be loaded with multi-channel pump head LEAD15-24, LEAD15-44, LEAD15-48, LEAD15-88, and the channel quantity is up to 8. The pump has graphic LCD, which could display the parameters and running state. Except the basic speed control function, the pump could also display the flow rate on the LCD and calibrate the flow rate with high accuracy.
Flow rates0.005ml/min-300ml/min
Max. Number of Channels8

Main Functions and Features

- Display can switch between flow rates and rpm
- Calibration capability for more accurate flow rate
- Graphic LCD together with rotary encoded switch makes it friendly and easy to use
- Higher torque to accept more pump heads and more channels
- RS485 communication interface available. Offering communication protocol to customer and customizing software according to customer's requirements.

Technical Specifications

- Speed: 1rmp - 100rpm, CW/CCW
- Speed resolution: 0.1rpm
- Control mode: Control panel, external signal control and communication control are available
- Display: 128*32 graphic LCD for current running state
- Calibration function: Improve flow rate accuracy
- External control: Start/stop, direction and speed control (4-20mA, 0-5V, 0-10V, external control module optional)
- Communication interface: RS485
- Power-off memory: Return to previous state when power on
- Prime: For fasting filling and emptying at full speed
- Dimension (L*W*H): 190×162×275(mm)
- Power supply: AC90V - 260V/50W
- Operating temperature:0
- Relative humidity: <80%
- Weight: 3.5kg

Other parameters

Pump Head Channel/Roller Tubing Flow Rates(mL/min) Weight(kg)
LEAD15-24 2/4 16# 25# 17# 300 (single channel) 4.36
LEAD15-44 4/4 4.42
LEAD15-48 4/8 13# 14# Inner diameter less than 3.17mm
Wall thickness 0.8-1.0mm
75 (single channel) 4.48
LEAD15-88 8/8
