High-resolution LCD touchscreen, easy-to-use.

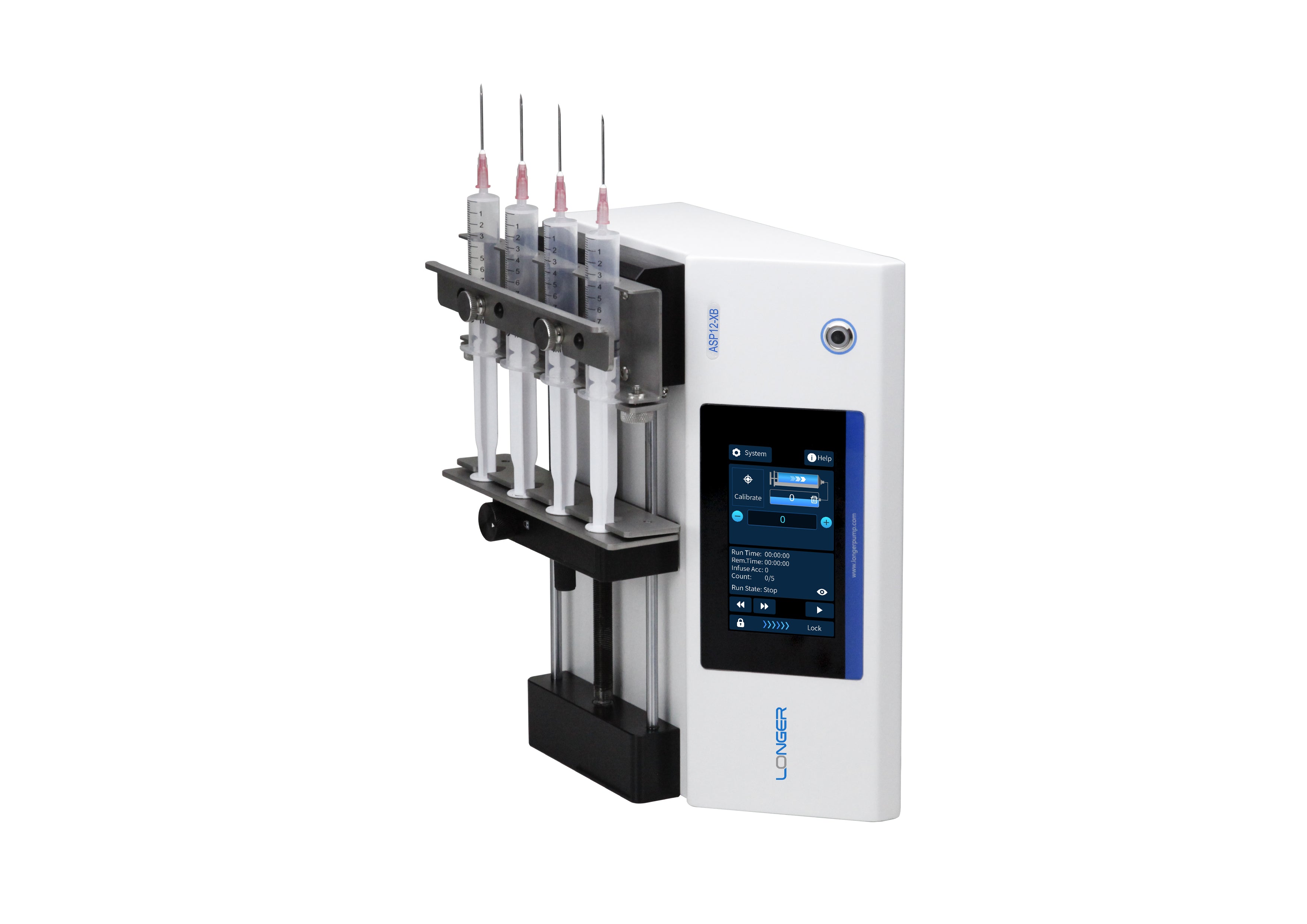

Compact design with vertical orientation operation to reduce the footprint by 50%.
Adjustable linear force up to 320N ensures the optimal force for different syringe sizes.
Wide flow rate range with real-time flow rate adjustment during operation.
Stable and pulseless flow for microfluid transfer
LabVIEW drivers and Demos for easy integration into LabVIEW platform
Good EMC performance, suitable for high-EMI environments such as electrospinning applications.

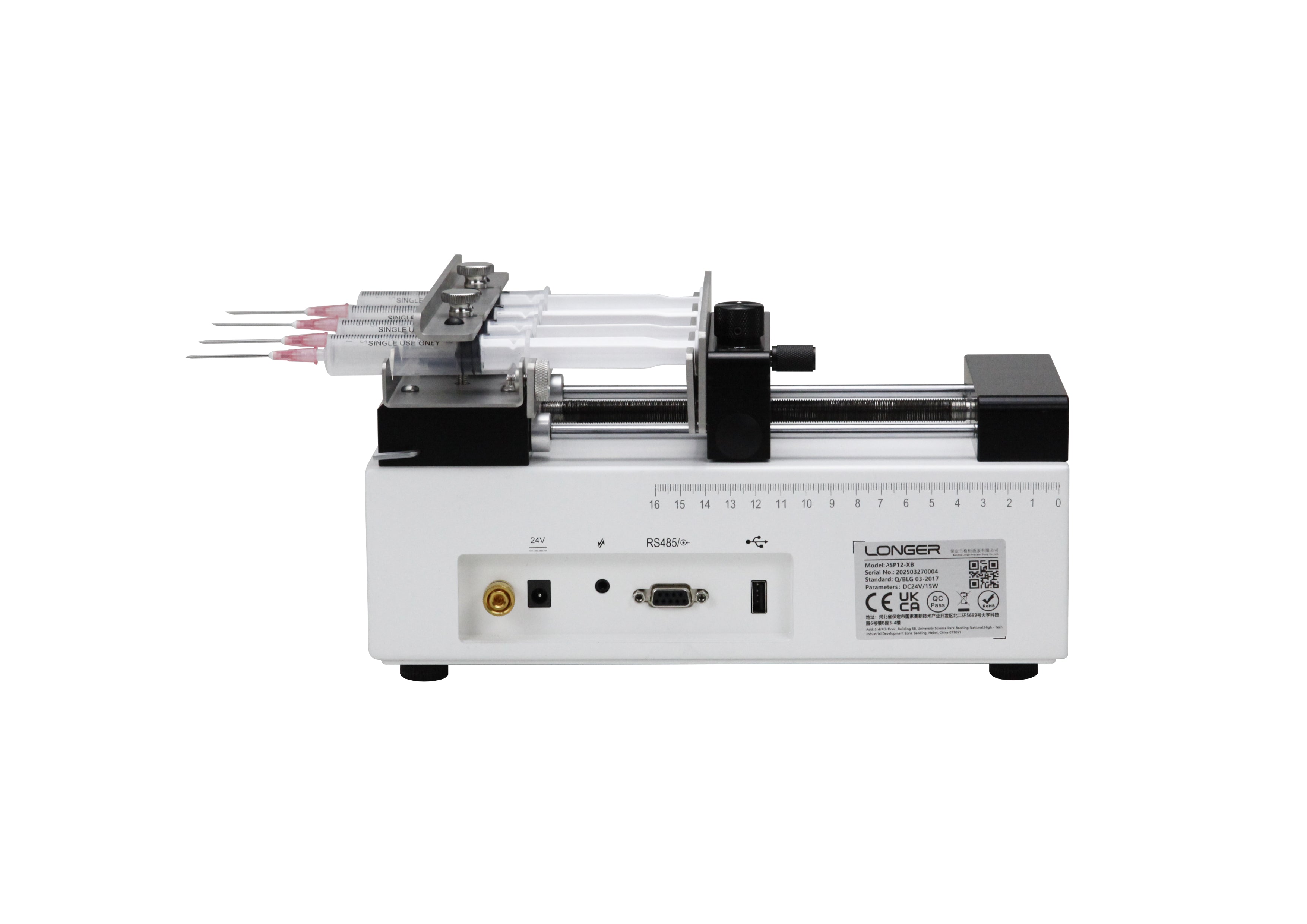

Supports external signal contorl, communication control (RS485 interface, Modbus RTU protocol), and footswitch control.
Audible beeps, indicator lights, and text prompts provide intuitive pump status notifications.
Bluit-in syringe brands for easy syringe selection. Custom syringe parameters can be saved and recalled easily.
Flow rate calibration function for the custom syringes can improve the flow accuracy.
Recipe parameters can be saved as presets for quick recall.
Supports on-site firmware upgraded vias USB drive.
Technical Specifications
|
Product Model |
ASP12-XB |
|||
|
Work mode |
Single infuse, multiple infuse, single withdraw, infuse/withdraw(continuous), withdraw/infuse(continuous) |
|||
|

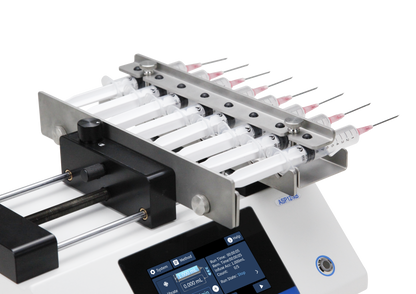

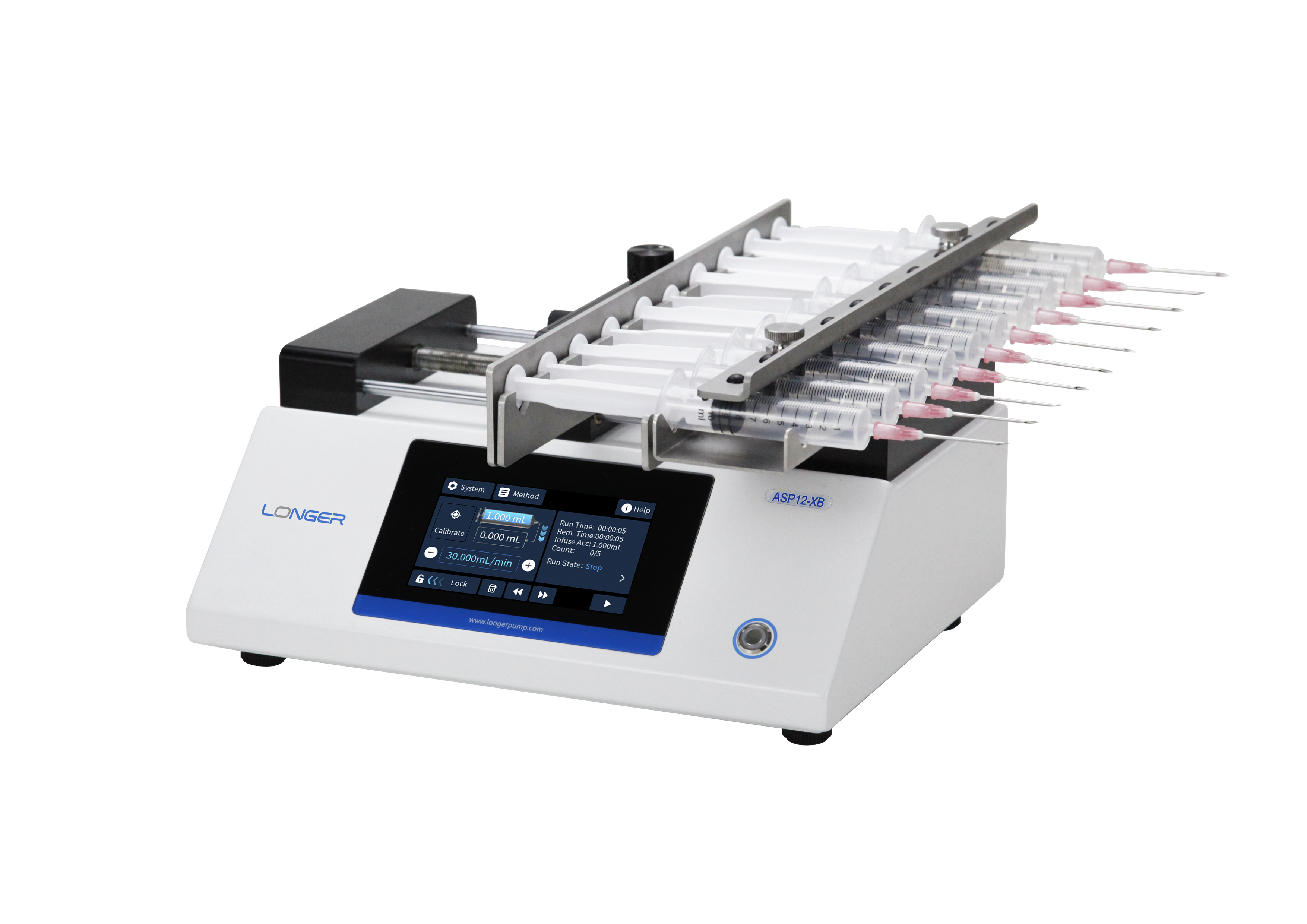

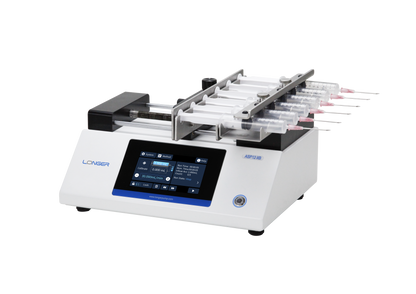

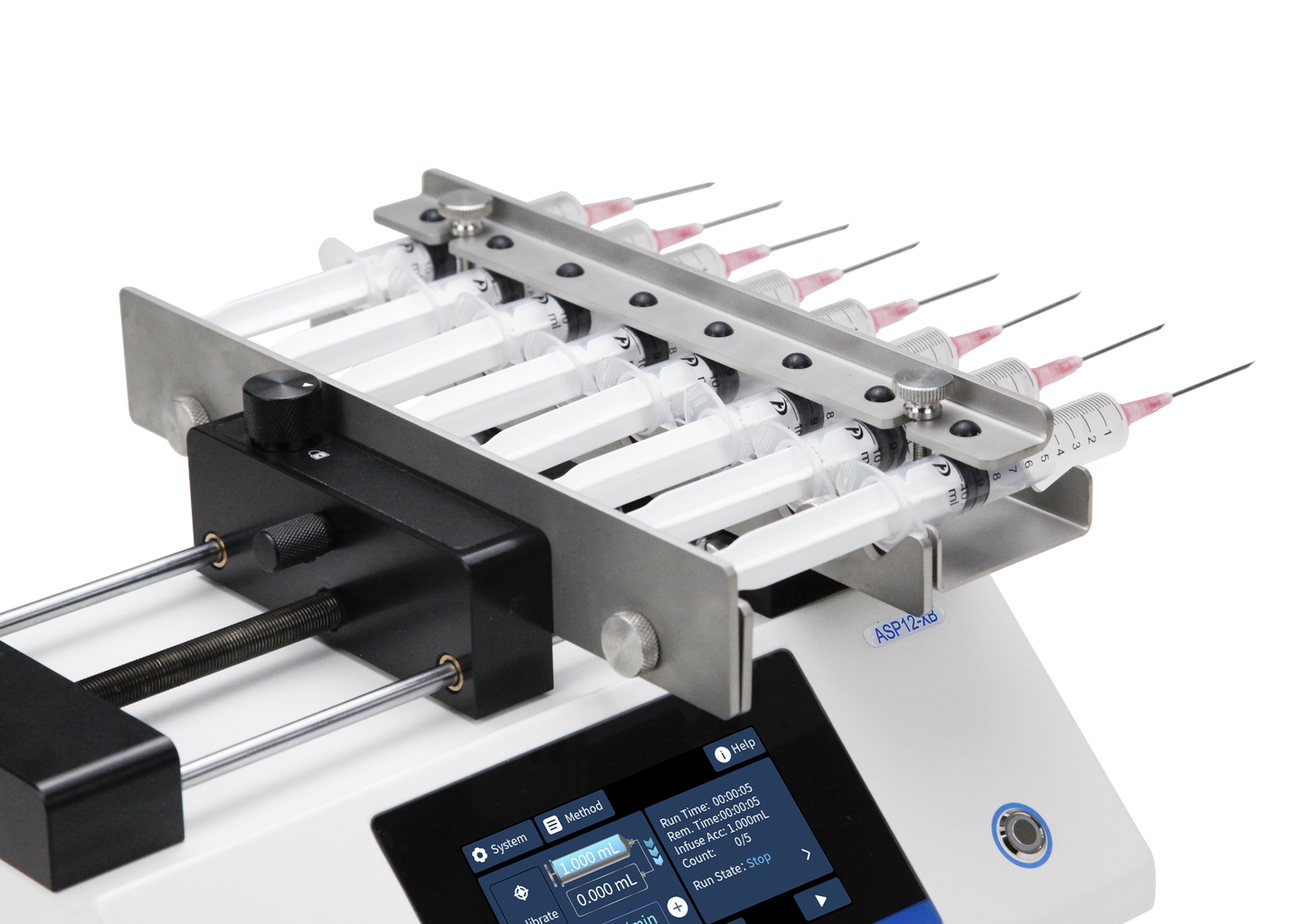

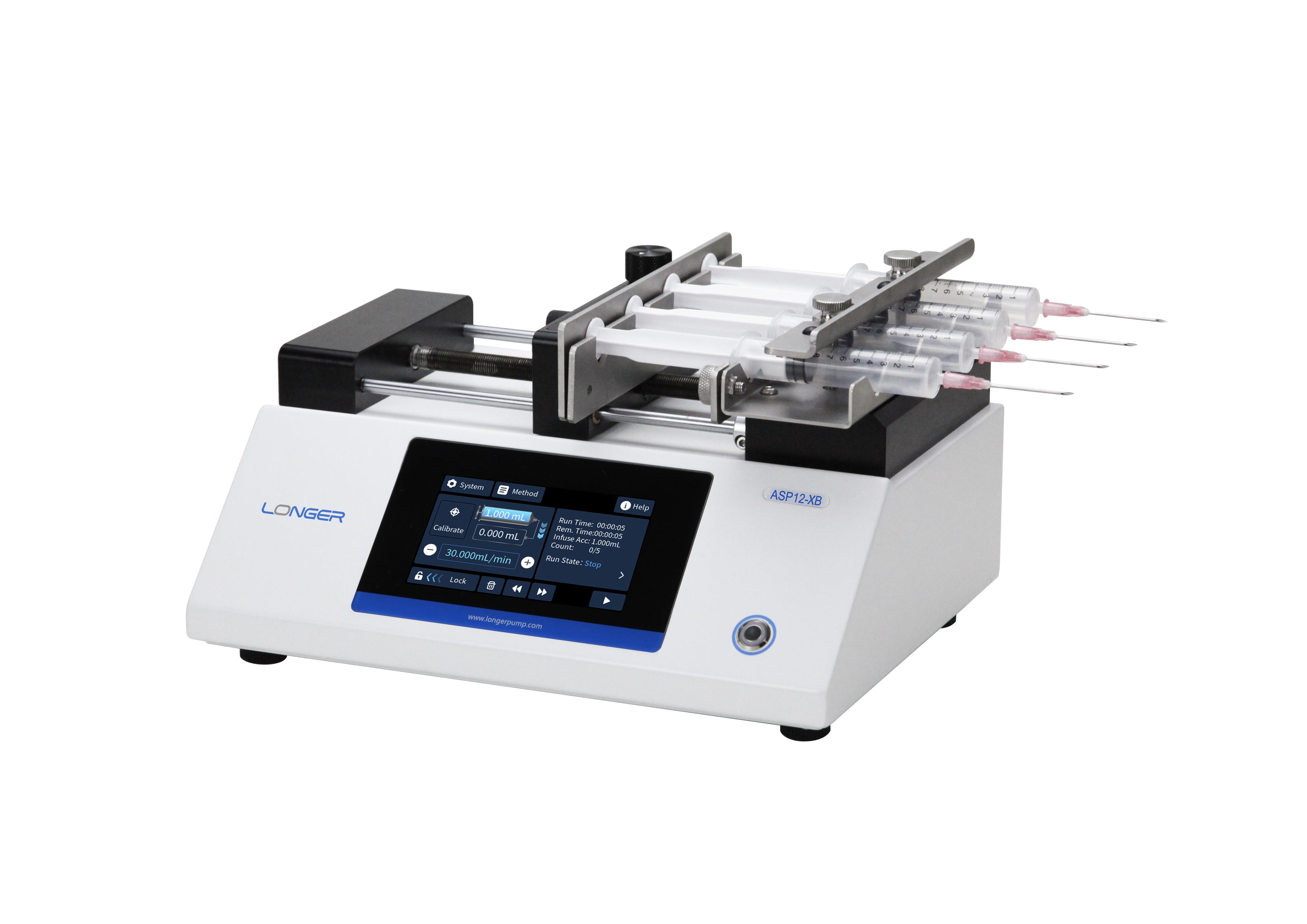

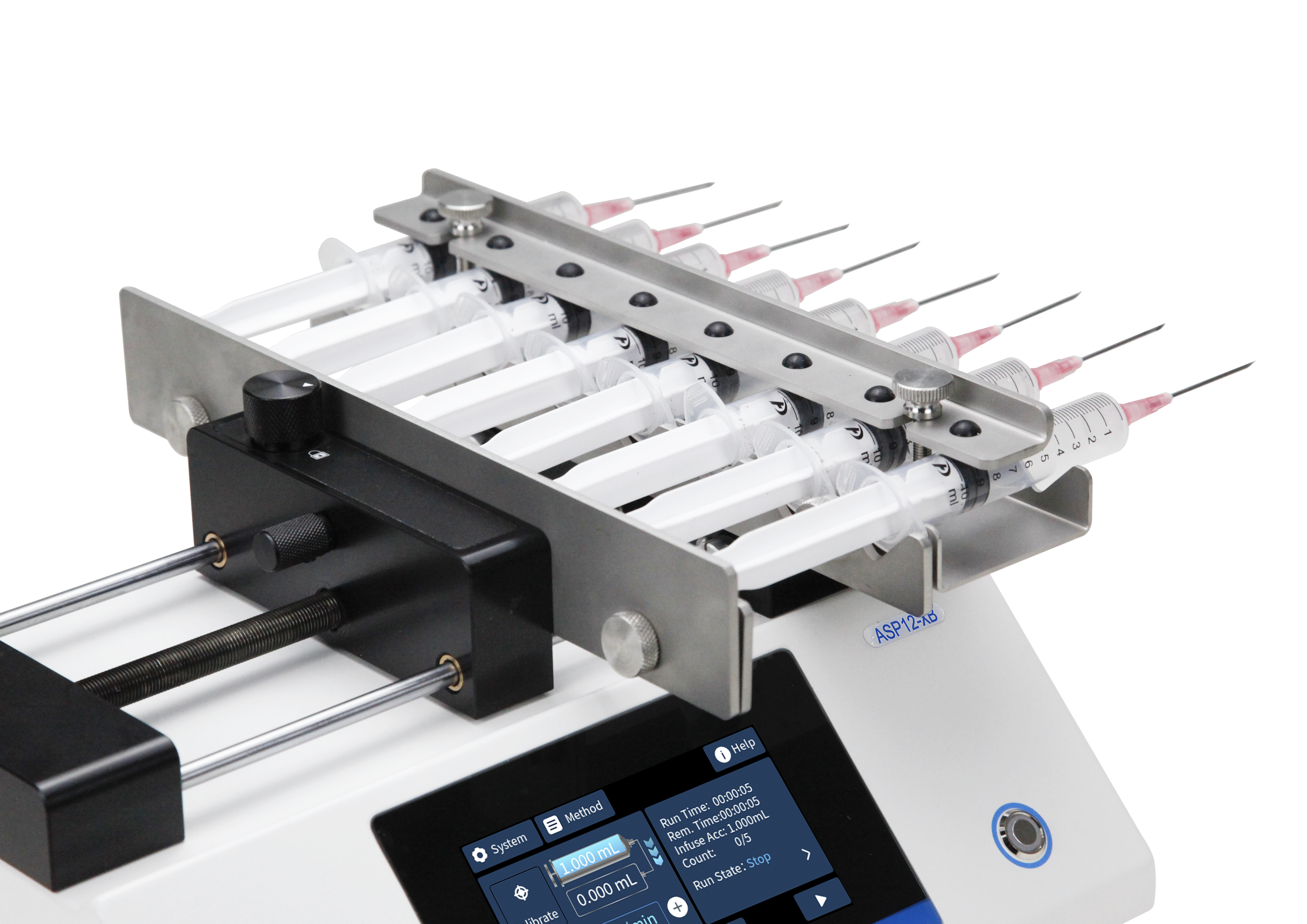

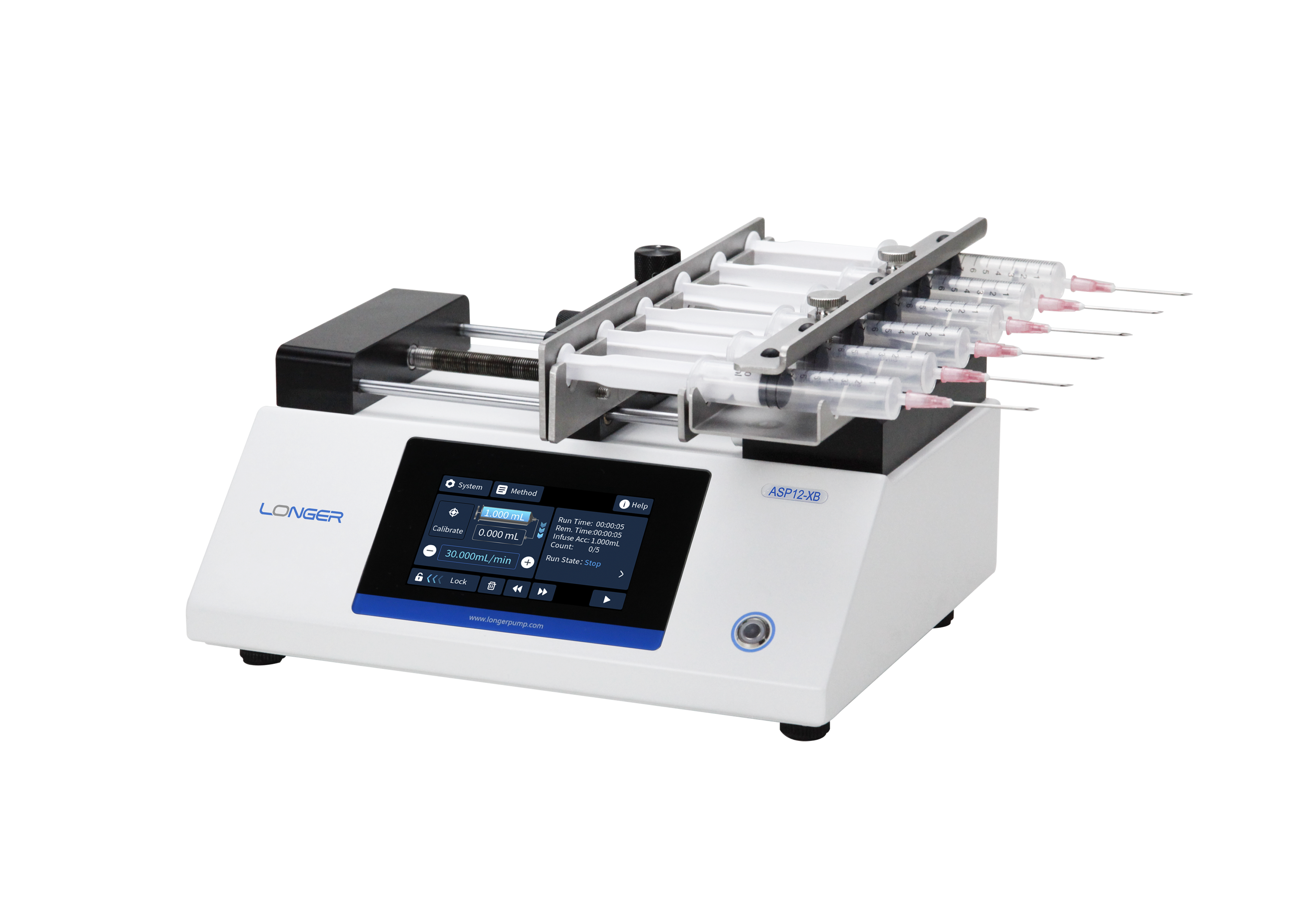

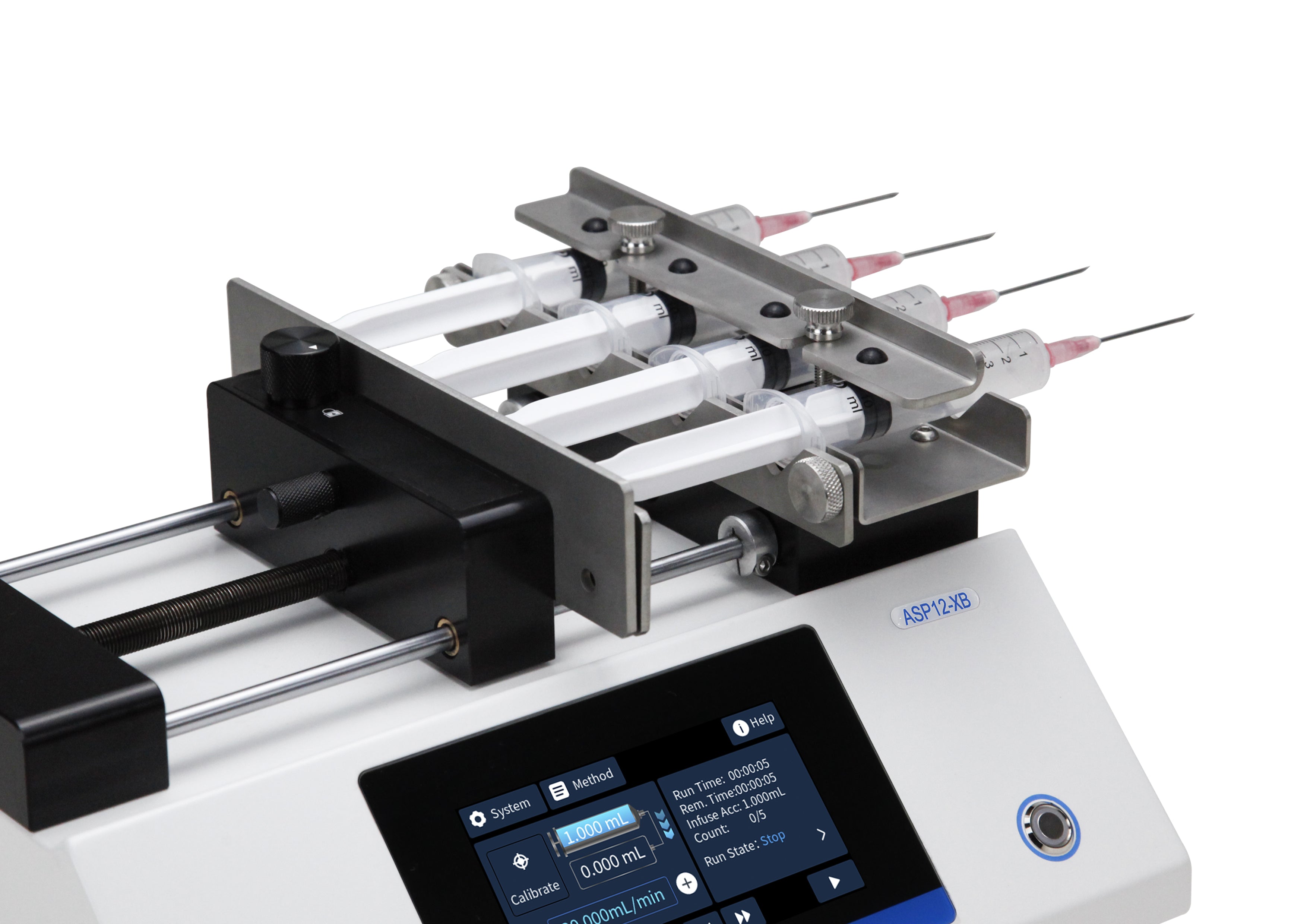

Number of syringes |
4 (with 4-channel Rack) |
6 (with 6-channel Rack) |
8 (with 8-channel Rack) |
10 (with 10-channel Rack) |
|
Syringe options |
0.5uL-10mL |
|||
|
Flow rate for reference |
3.3pL/min-39mL/min |
|||
|
Stroke |
140mm |
|||
|
Pusher advance per microstep |
0.0326μm/microstep |
|||
|
Linear speed |
0.416um/min-180mm/min |
|||
|
Linear speed resolution |
0.416um/min |
|||
|
Linear travel accuracy |
≦±0.35% (when travel≧30% of stroke） |
|||
|
Linear travel CV |
CV≦0.03% (when travel≧30% of stroke） |
|||
|
Linear force (max.) |
320N(can be set 20%-100%) |
|||
|
Built-in syringe |
Common syringe brands and models on the market |
|||
|
User-defined syringe |
Store 20 user-defined syringes: travel≤140mm，6.2mm≤OD≤20mm |
|||
|
Calibration |
Improve flow rate/ volume precision and accuracy by calibrating the user-defined syringe |
|||
|
Display |
4.3 inch LCD for parameters and pump status，Chinese / English |
|||
|
Parameter method |
20 parameter methods can be stored and easily recalled |
|||
|
Control mode |
Touchscreen control, external control, communication control, footswitch control, Labview control |
|||
|
External control |
Two control inputs: switch signals or level signals for start/stop and emergency stop Two status outputs: can be configured as start/stop, direction or fault alar |
|||
|
Communication control |
RS485, Modbus RTU or Longer OEM protocol |
|||
|
Real-time adjustment |
The flow rate can be adjusted while the pump is running |
|||
|
Audible alert |
Beep sound can indicate keypad clicks, near end of run, end of run, and fault alarm |
|||
|
Indicator light |
Green-running，Blue-standby，Red-Warning |
|||
|
Screen lock |
The touchscreen can be locked to prevent misoperation |
|||
|
Vertical display |
The display will rotate 90 degrees to support vertical operation. |
|||
|
Pump status when power up |
Stop |
|||
|
Fast forward/backward |
Infuse or withdraw at full speed |
|||
|
EMC |
NB CE/UKCA certified |
|||
|
Dimensions (LxWxH) |
280mm×223mm×160mm |
280mm×263mm×160mm |
280mm×270mm×160mm |
280mm×315mm×160mm |
|
Power supply for adapter |
AC 90V-260V |
|||
|
Power supply for pump |
DC24V/15W |
|||
|
Temperature |
0 - 40°C |
|||
|
Humidity |
≤80%RH, No condensation |
|||
|
Weight |
4.65kg |
4.85kg |
4.95kg |
5.15kg |
Compatible Syringes
| Syringe |
Syringe ID (mm) |
Flow rate for reference |
|
0.5uL |
0.10 |
0.0033nL/min-0.0014mL/min |
|
5uL |
0.35 |
0.040nL/min-0.0173mL/min |
|
10uL |
0.46 |
0.0691nL/min-0.0353mL/min |
|
25uL |
0.80 |
0.2090nL/min-0.0904mL/min |
|
50uL |
1.10 |
0.3951nL/min-0.1710mL/min |
|
100uL |
1.60 |
0.8360nL/min-0.3617mL/min |
|
250uL |
2.30 |
1.7275nL/min-0.7475mL/min |
|
500uL |
3.25 |
3.4493nL/min-1.4925mL/min |
|
1mL |
4.72 |
7.2752nL/min-3.1479mL/min |
|
5mL |
13.10 |
56.041nL/min-24.248mL/min |
|
10mL |
16.60 |
89.987nL/min-38.937mL/min |
