Product Instruction

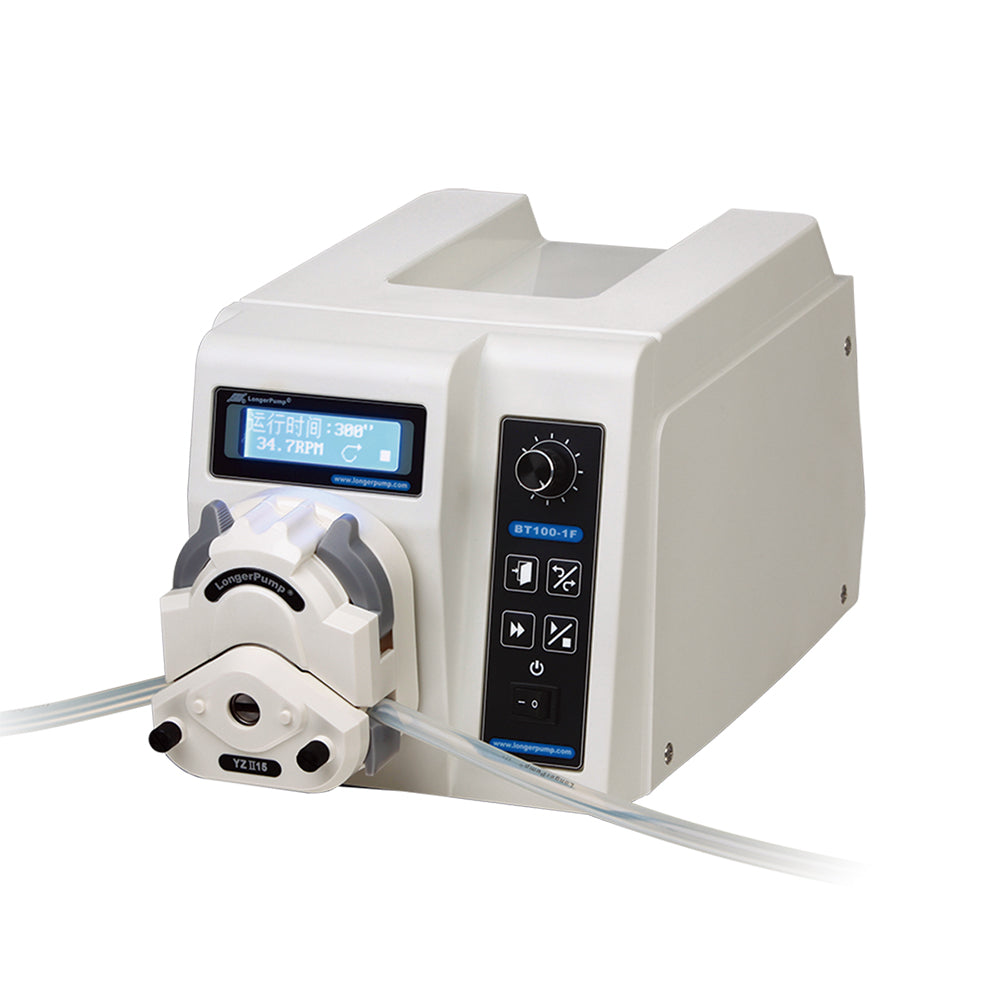

Dispensing peristaltic pump BT100-1F has LCD, which could display the parameters and running state. The pump could run continuously at desired flow rate and speed, and also could complete the dispensing function. The flow rate calibration and dispensing calibration ensure the high accuracy and precision. The pump offers flow rate from 0.0002 mL/min to 500mL/min. And the dispensing volume is from 0.01mL to 9990mL.
Flow rates：0.0002ml/min-500ml/min
Max. Number of Channels：4
Main Functions and Features
- Micro flow rates transferring: The smallest flow rate can reach 0.2 μL/min
- Dispensing function: dispense the fluid at desired volume, dispensing time and batch cycles.
- Back suction function: 0s - 99.9min, resolution is 0.1s
- Operating mode: Membrane keypad and rotary encoded switch
- Speed control: The speed can be adjusted manually or automatically through external control interface
- Prime key: For fast filling and emptying at full speed
- Power-off memory: Return to previous state when power on
- Communication function: the pump could be controlled by computer through RS485 communication interface.
Technical Specifications
- Speed resolution: 0.1 rpm
- Control mode: Control panel, external signal control and communication control are available
- Display: LCD for running state
- Dispensing volume: 0.01 mL to 9.99 L
- Copy number: 0 to 9999, 0 means unlimited cycle.
- Pause time: 0.1s-99.9 min, resolution is 0.1s
- Exteranl control: Start/stop, direction and speed control (4-20mA, 0-5V, 0-10V, 0-10kHz corresponding to 0.1-100 rpm)
- Speed output: 10Hz - 10kHz corresponding to 0.1 - 100 rpm
- Start/stop output: OC gate signal
- Direction output: OC gate signal
- Communication interface: RS485
- Power: AC90V - AC260V
- Operating condition: Temperature 0 to 40°C, Relative humidity < 80%
- Dimensions (L × W × H): 285 × 207 × 180 (mm)
- Drive Weight: 3.8 kg
- IP rating: IP 31
Other parameters
| Pump Head | Tubing | Flow Rates(mL/min) | Weight(kg) |
| DG-1(6) | Wall thickness:0.8-1, Inner diameter less than3.17 |
Single channel 48 | 4.4-4.3 |
| DG-1(10) | Wall thickness:0.8-1, Inner diameter less than3.17 |
Single channel 32 | 4.4-4.4 |
| DG-2(6) | Wall thickness:0.8-1, Inner diameter less than3.17 |
Single channel 48 | 4.4-4.5 |
| DG-2(10) | Wall thickness:0.8-1, Inner diameter less than3.17 |
Single channel 32 | 4.4-4.6 |
| DG-4(6) | Wall thickness:0.8-1, Inner diameter less than3.17 |
Single channel 48 | 4.4-4.7 |
| DG-4(10) | Wall thickness:0.8-1, Inner diameter less than3.17 |
Single channel 32 | 4.4-4.8 |
| YZ1515X | 13#, 14#, 19#, 16#, 25#, 17#, 18# | 380 | 4.2 |
| YZⅡ15 | 13#, 14#, 19#, 16#, 25#, 17#, 18# | 380 | 4.2 |
| YZ2515X | 15#, 24# | 270 | 4.2 |
| YZⅡ25 | 15#, 24#, 35#, 36# | 500 | 4.2 |
| DG15-24 | 16#, 25#, 17# | Single channel 300 | 4.6 |
| DG15-28 | Wall thickness:0.8-1， Inner diameter less than3.17, 13#, 14# |
Single channel 75 | 4.5 |
| DMD15-13-B | 2×13#, 2×14#, 2×19#, 2×16#, 2×25# | 350 | 4.2 |
| DMD15-13-D | 2×13#, 2×14#, 2×19#, 2×16#, 2×25# | 350 | 4.2 |
