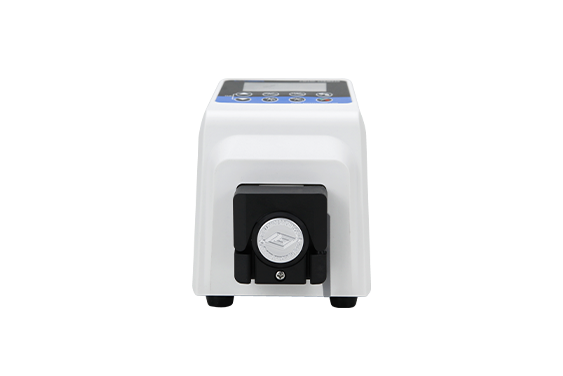

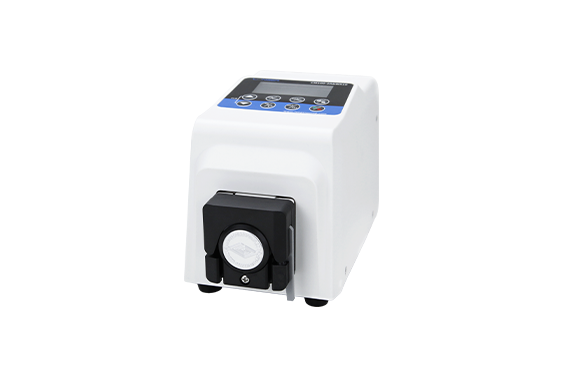

GM100-2A&WX10 Mini Peristaltic Pump
GM100-2A&WX10 Mini Peristaltic Pump
Couldn't load pickup availability
Compact size and structure
Speed control 10,000:1
Continuous and timer modes for different applications
Keypad and footswitch control for local operation
Low-noise design
Including the 4-roller pump head WX10-14 with low pulsation
Technical Specifications
|
GM100-2A&WX10 |
|
|
Pump speed |
0-100rpm |
|
Speed resolution |
0.01 rpm (转速<10rpm)；0.1rpm (10rpm≤转速≤100rpm) |
|
Display |

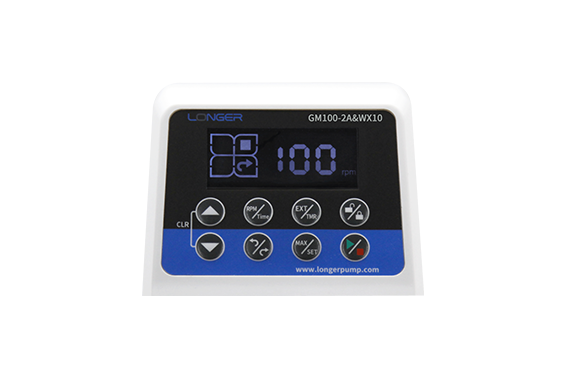

LCD screen for pump speed, running direction, time, start/stop status and work mode |
|
Running direction |
Clockwise or counter-clockwise, can be toggled during running |
|
Work mode |
Continuous or timer mode |
|
Control mode |
Keypad or footswitch control |
|
Keypad control |
Set the parameters and control the pump via keypad: start/stop, running direction, prime function, speed adjustment, work mode, timer |
|
Footswitch control |
Control the start/stop via a footswitch |
|
Timer function |
In time mode, the pump runs and stops based on the set timer duration. Timer range: 0.1s to 999h. |
|
Runtime counter |
In continuous mode, the pump automatically records the runtime and can accumulate the multiple operation periods (reset upon power-up). Timing range: 0.1s-999h |
|
Keypad lock |
To prevent misoperation |
|
Pump status when powered up |
Stop |
|
Parameter retention |
Run and system parameters are saved after power loss |
|
Prime |
Fast filling or emptying at full speed |
|
Dimensions (L*W*H) |
200x115x135mm (including pump head) |
|
Power supply for adapter |
AC100-240V, 50Hz-60Hz |
|
Power supply for adapter |
DC24V/8W |
|
Power supply for pump |
Environment temperature:0℃-40℃, relative humidity:<80% |
|
IP rating |
IP31 |
|
Weight |
1.25kg (including pump head) |
Compatible Pump Head and Tubing
|
Pump Model |
Product Code |
Pump Head Model (included) |
Roller Number |
Pump Head Material |
Tubing |
Max Flow Rate Reference （mL/min） |
|
GM100-2A&WX10 |
05.02.01A |
WX10-14-A |
4 |
Housing：ABS Roller：POM |
ID≤3.17mm， W.T.: 0.8-1mm |
40 |
Dimensions
Flow Curve
