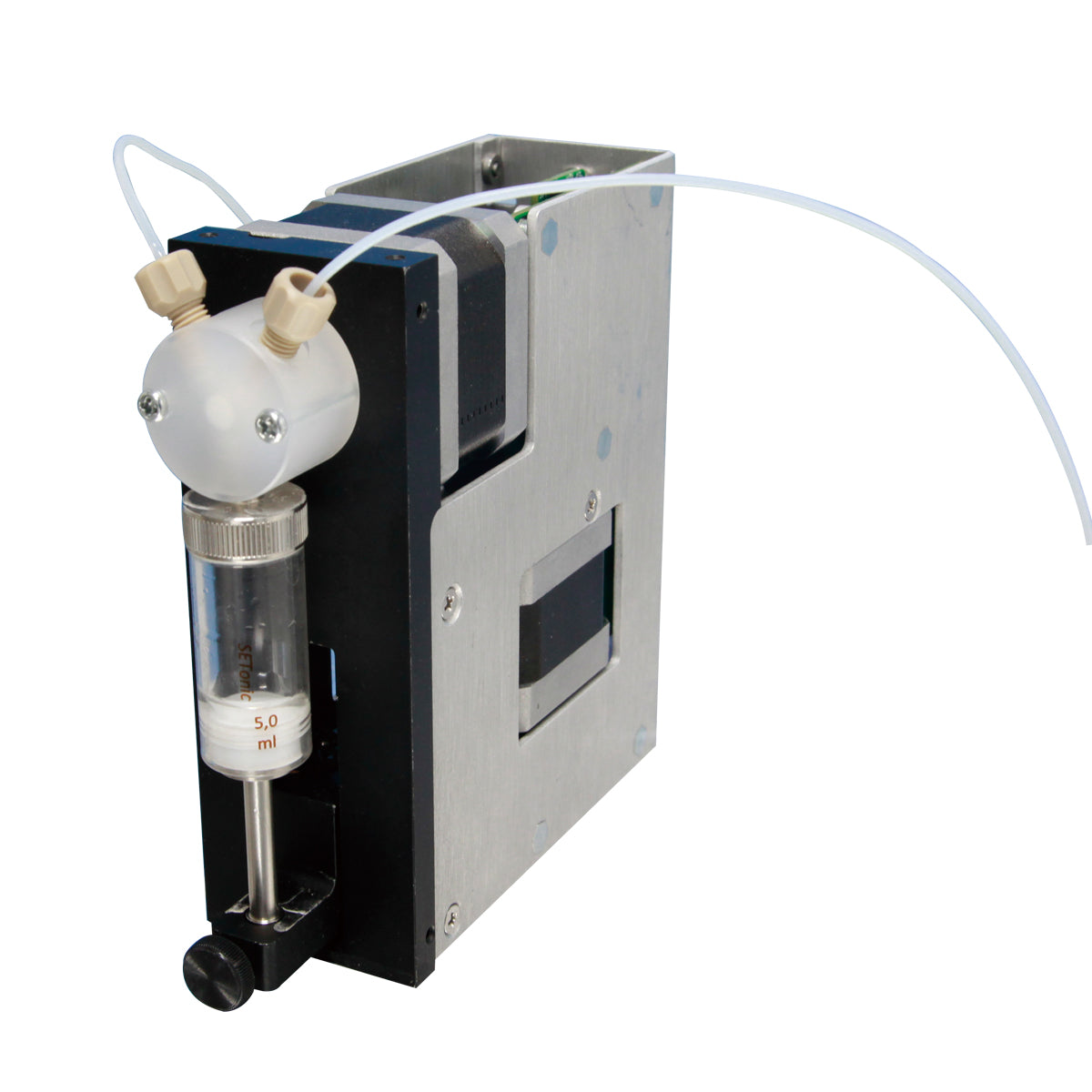

Product Introduction

Mainly used in OEM equipment and instruments, especially for lab automation systems and IVD application
Rotating valve, and misc. accessories available
RS485, RS232 or CAN bus communication interface
CE certified, RoHS compliant

Flow rates：0.0025-250ml/min
Max. Number of Channels：1

Technical Specifications

Main Spec
Accuracy：≤1.0 % (syringe ≥1 mL)
Precision：CV≤0.05% at full stroke (with syringe ≥ 1mL )
Wetted material：Borosilicate glass，PTFE，PFA，CTFE，ETFE，UHMW-PE
Dimension (L x W x H)：110mm x 44.4mm x 127mm
Weight：1.0 kg
Power supply：DC 24V，1.5A (peak)

Syringe and Drive
Syringe fitting：1/4″-28 thread
Syringe：50uL, 100uL, 250uL, 500uL, 1mL, 2.5mL, 5mL
Syringe material：Borosilicate glass，stainless steel plunger with PTFE coating, PTFE or UHMW-PE plunger tip
Resolution (standard mode)：3000 steps with 0.01mm in 1 step
Resolution (microstep mode)：48000 microsteps with 0.625um in 1 microstep
Travel：30mm
Time for full stroke：1.26s-1200s
Drive system：Ball screw drive with optical encoder

Valve & Valve Drive
Turn Time：≤250ms between adjacent ports
Valve options：Standard: 3-port valve, optional: 3-port distribution valve,  4-port valve, T-valve, Y-block
Max pressure：0.68MPA
Fitting：1/4″-28 thread

Communication
Interface：RS485, RS232, CAN bus，external control input and output
Protocol：Data terminal，OEM protocol (serial)  or  CAN
Baud rate："RS485 or RS232: 9600bps or 38400bps
CAN bus: 100 KB, 125 KB 250 KB, 500 KB or 1MB"
Format：Data bit: 8;  parity: none; stop bit: 1;  half duplex (RS232/485)

Firmware
Topology group：Up to 15 pumps in one group, support group control and individually addressed
Upgrade firmware online："One Click"  by customer  through PC Utility
Homing Algorithm：Plunger home position is identified by motor stall, which will reduce the dead volume of the system
Halt function：For better interactive control, "h " command is used to halt execution of the command string during plunger movement. To resume execution with "R" or "r" command
Microstep mode：Set microstep mode for smoother motion with 48000 microsteps per stroke, 1/8 microstepping or 1/16 microstepping
Programmable parameter：Programmable ramps, cut-off velocity, plunger speeds, backlash compensation,  programmable work-flow command set , delays and loops, terminate moves, diagnostics, absolute and relative positions

Environmental
Operating temperature：Recommended: 15℃-40℃ ，use low temperature syringe for low temperature application
Operating Humidity：＜80% RH,  no condensation
Storage temperature： -20℃-65℃
Storage Humidity：＜80% RH, no condensation
