Langer Instruments

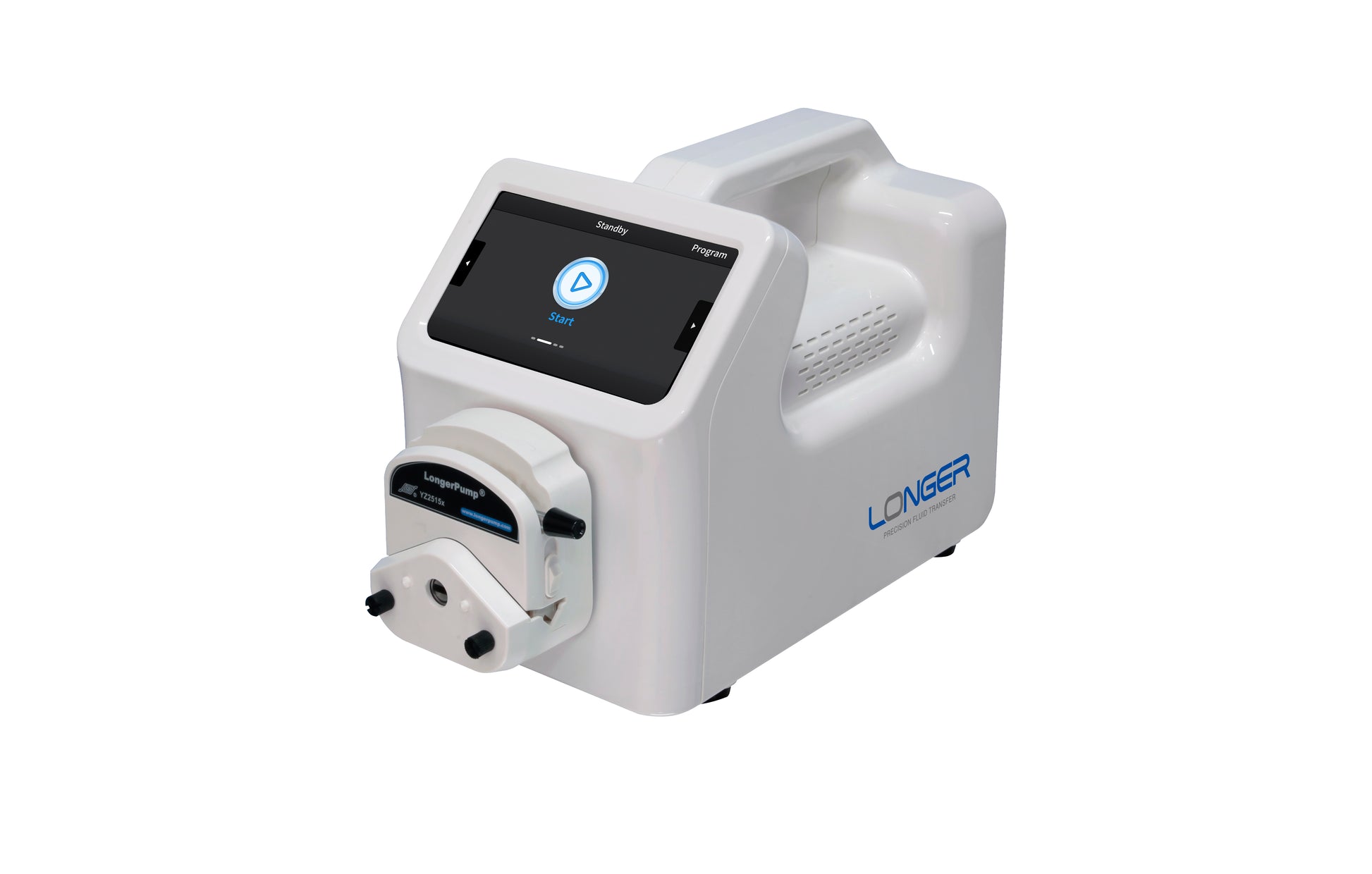

L100-1F Intelligent Peristaltic Pump

L100-1F Intelligent Peristaltic Pump

Regular price $1,965.00
Regular price Sale price $1,965.00
Sale Sold out
PUMP HEAD

Product Instruction

Intelligent Fluid Control,Unparalleled Experience on Touch Screen

Intuitive graphic interface and modular programming, quickly set up your own application process
Powerful function and flexible configuration, make it easier to run multi-step complex programs.

Flow rates:-≤500ml/min

Max. Number of Channels:8



Main Functions and Features

7 inch color display, full touch screen and intuitive graphic interface, provide easy-to-use operations

· 7 inch color display shows more information simultaneously
· Intuitive graphic interface and full touch screen quickly set up application process



Customize parameters by programming, and the parameter programs can be stored and easily recalled


· Parameters are defined by programming
· 7 parameter programs of up to 10 steps can be configured and stored
· Program name can be defined by letters and numbers for identification and easy recall
· Preset external control program is for remote control through external signal




Multiple function modules and intelligent algorithms are designed for a wide variety of applications, including routine and multi-step complex applications

· 9 running control modules: constant, ramp up, ramp down, stepped up, stepped down, sine, constant dispensing, ramp up dispensing. ramp down dispensing
· 8 logic control modules: direction, delay, event trigger,status output, pause, jump, loop, stop
· Each running control module can be used independently for simple routine application
· Configure multi-step program with multiple modules for complex application

9 Running Control Modules:


8 Logic Control Modules:



Pump can be controlled through touch screen,foot switch,analog signal and communication,combined with a variety of interfaces(USB,RJ11,DB9 etc.) for easy system connection

Multiple pump head and tubing options for a wide flow range

Technical Specifications

L100-1F: Speed:0.1-100rpm, CW/CCW,   Speed resolution:0.1rpm resolution, Flow rate:0.15ul/min-500ml/min, Power Consumption:35W
L300-1F: Speed:0.1-300rpm, CW/CCW,   Speed resolution:0.1rpm resolution when speed <100rpm, 1rpm resolution when speed >=100rpm, Flow rate:0.15ul/min-1500ml/min, Power Consumption:55W
L600-1F: Speed:0.1-600rpm, CW/CCW,   Speed resolution:0.1rpm resolution when speed <100rpm, 1rpm resolution when speed >=100rpm, Flow rate:0.15ul/min-3000ml/min, Power Consumption:100W

Dispensing volume:0.1mL-9999L(accuracy of ±2% with calibration)
Calibration:Improve the flow rate and dispensing volume accuracy.
Display:7Inch 1024*600 color LCD
Language:Chinese or English, set as needed
Control mode:Touch screen control, footswitch control, external signal control and communication control
Work mode:Programming
Programming function:Running control module: constant, ramp up/down, stepped up/down, sine, constant dispensing, ramp up/down dispensing.
Logic contol module: direction, delay, event trigger, status output, pause, jump, loop, stop
Configure multi-step program with multiple modules for complex application
External control:Start/stop control, direction control: voltage level signal or switch signal(dry contact)
Speed control: 0-5V, 0-10V, 4-20mA or 0-10kHz with uniform interface, max speed can be set.
Communication control:USB or RS485(RJ11) interface, Modbus protocol, multiple baud rate (1200/ 2400/ 4800/ 9600/ 19200/ 38400bps)
Status output:Output voltage level signals to indicate pump running status, direction status, and other custom status.
Parameter programs:7 parameter programs can be stored and easily recalled
Delayed start:Pump can start running at desired time
Back suction:Antidrip through setting back suction angle and delay time for high dispensing accuracy
Dispensing volume setting range:0.001uL-9999L
Interval time setting range:0.5s-9000s
Dispensing cycle setting range:1-99999(0 for unlimited)
Dispensing time setting range:0.5s-9000s (0s for continuous transfer without time limit)
Delay time setting range:0.5s-9000s
Prime:Fast filling and emptying at full speed
EMC:Comply with EMC Directive 2014/30/EU
Dimension (L*W*H):294mm×180mm×235(mm)
Power supply:AC196V-242V, 50/60Hz
Operating temperature:0℃-40℃
Relative humidity:<80%
IP rating:IP31
Weight:5.0kg

Other parameters

Pump Head Tubing Flow Rates
(mL/min)
Weight(kg)
YZ1515X,    YZ II15 13# 14# 19# 16# 25# 17# 18#­ 380 5.4
YZ2515X 15# 24# 266 5.4
YZⅡ25 15# 24# 35# 36# 500 5.4
FG15-13 13# 14# 19# 16# 25# 17# 18# 430 5.3
FG25-13 15# 24# 270 5.3
DMD15-13-B 2*13#, 2*14#, 2*19#, 2*16#, 2*25# 375 5.4
BZ15-13-A 14# 22 5.3
BZ15-13-B 16# 80 5.3
BZ15-13-C 25# 150 5.3
BZ15-13-D 17# 270 5.3
BZ25-13-B 24# 250 5.3
DG15-24 16# 25# 17# 300 single channel 5.8
DG15-28 13# 14#
Inner Diameter3.17mm,
Wall thickness 0.8-1mm
75 single channel 5.7
DG-(1,2,4,6,8) 6 rollers Inner Diameter3.17mm,
Wall thickness 0.8-1mm
48 single channel 5.2-5.6
DG-(1,2,4) 10 rollers Inner Diameter3.17mm,
Wall thickness 0.8-1mm
32 single channel 5.2-5.6
