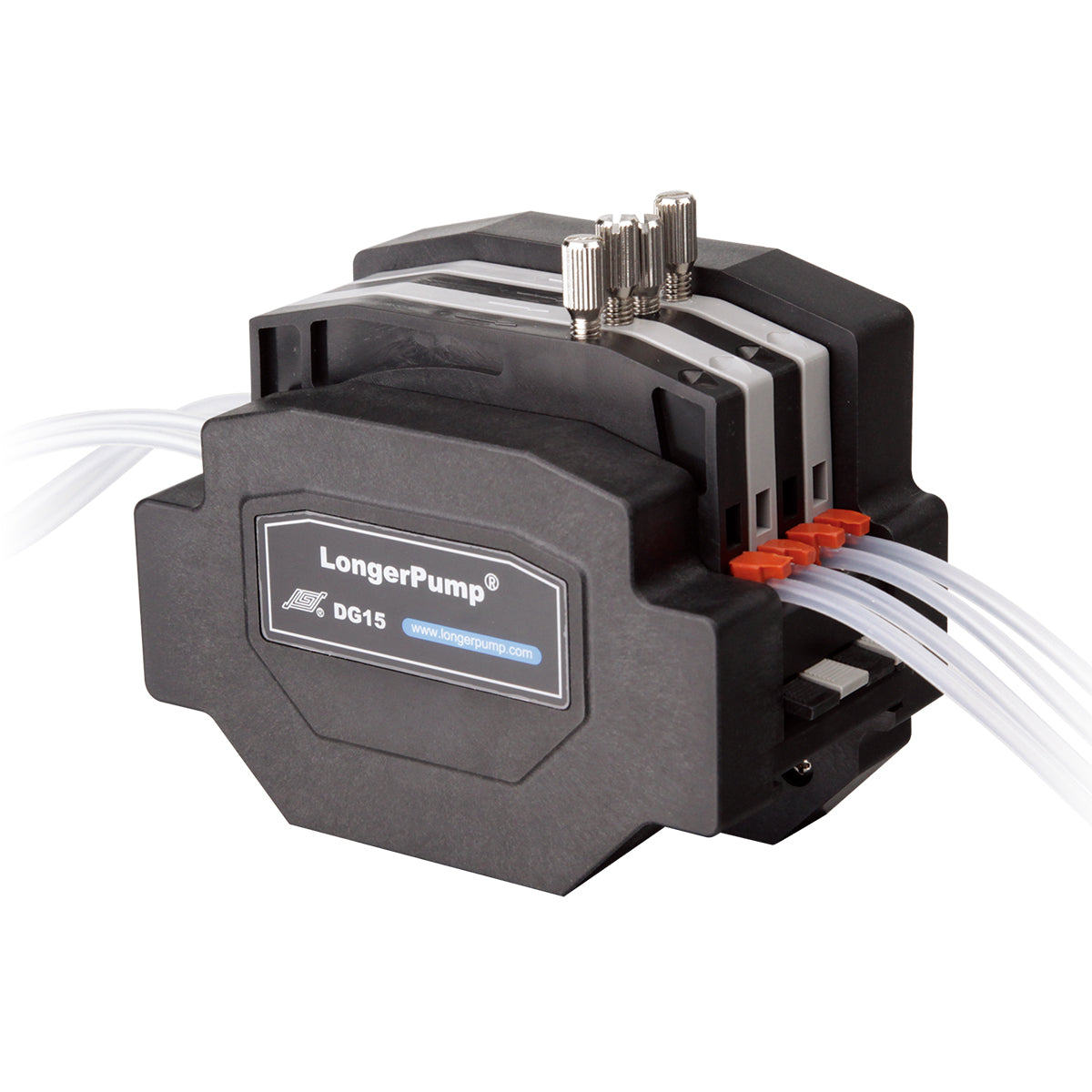

DG15 Peristaltic Pump Head
DG15 Peristaltic Pump Head

DG15 Peristaltic Pump Head


Product Introduction

DG15 series pump heads are designed for medium and small flow rates, multi-channel fluids transfer. Easy to change and fix the tubing. Occlusion can be adjusted slightly. The rollers adopt high quality materials. The pump head consists of base, rotor assembly and easy-to-load cartridges.
Flow rates-≤1800ml/min
Max. Number of Channels4

Main Functions and Features

Pump Head Type:

Technical Specifications

Dimensional Drawing:

Other parameters

Model Channel Roller Number Speed
Tubing Max Flowrate
DG15-24 2 4 600 16# 25# 17# 1800 single channel 0.82
DG15-28 2 8 100 13# 14# Inner diameter less than 3.17mm, wall thickness 0.8-1.0mm 75 single channel 0.67
DG15-48 4 8 0.87
